Square Channel Door Handle Lock Set

What this door handle set is

This is a single door handle lock set. The lever has a square channel profile with a soft top edge, and it sits on a round rose that mounts flat against the door face. The body is zinc alloy with a lacquered finish that holds its color and wipes clean.

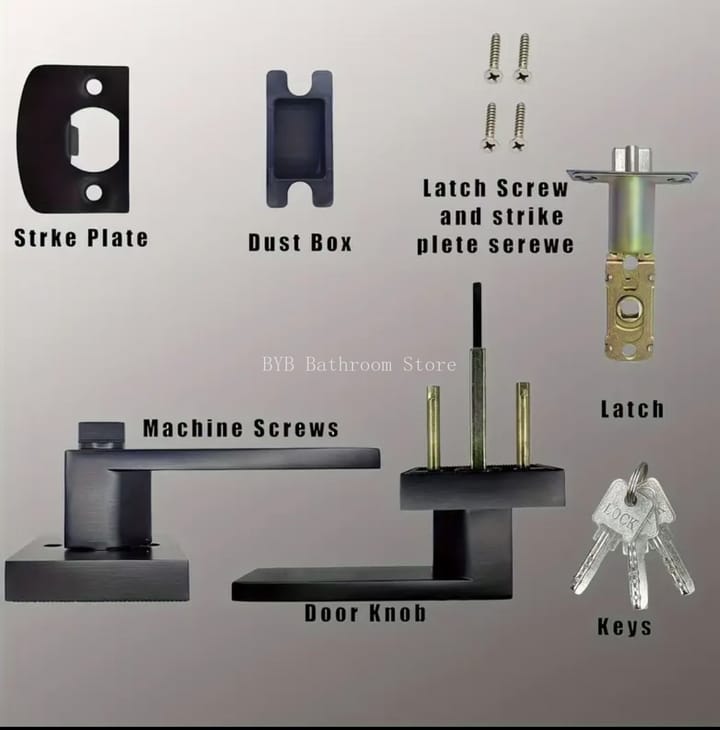

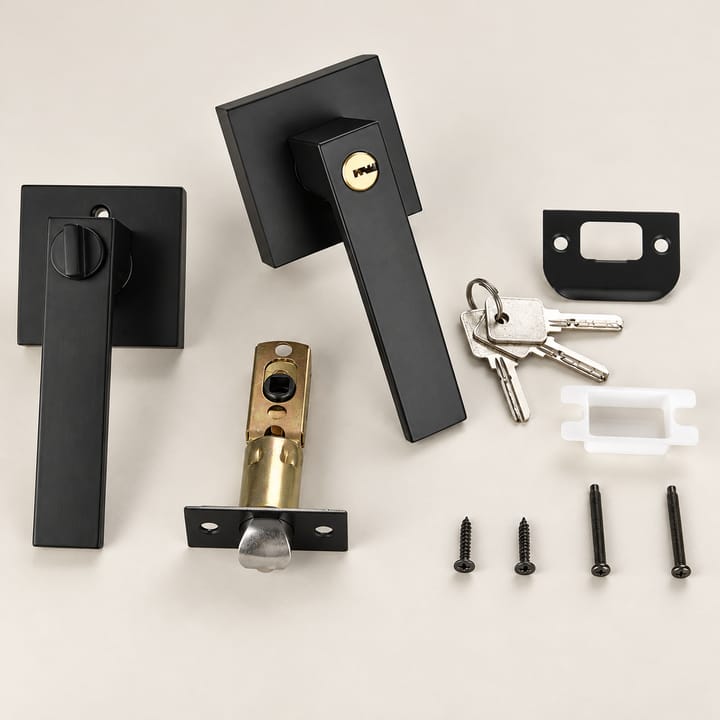

The latch and strike plate screw to the door edge and frame. Three keys come with the set, so you have a spare for a household member and one to keep aside.

Size and fit

Check your door thickness before you order. This set is not for doors thicker than 1-3/4 in (45 mm). The handle size suits most standard interior and front doors, and the square channel lever gives a firm grip without a sharp edge.

If your door is thinner than the maximum, the latch still sits correctly because the fixing screws pull the two sides together. Measure at the door edge, not the frame, for the most accurate reading.

Colors

Pick from three finishes at checkout:

• Black: a deep, matte look that suits dark doors and modern trim.

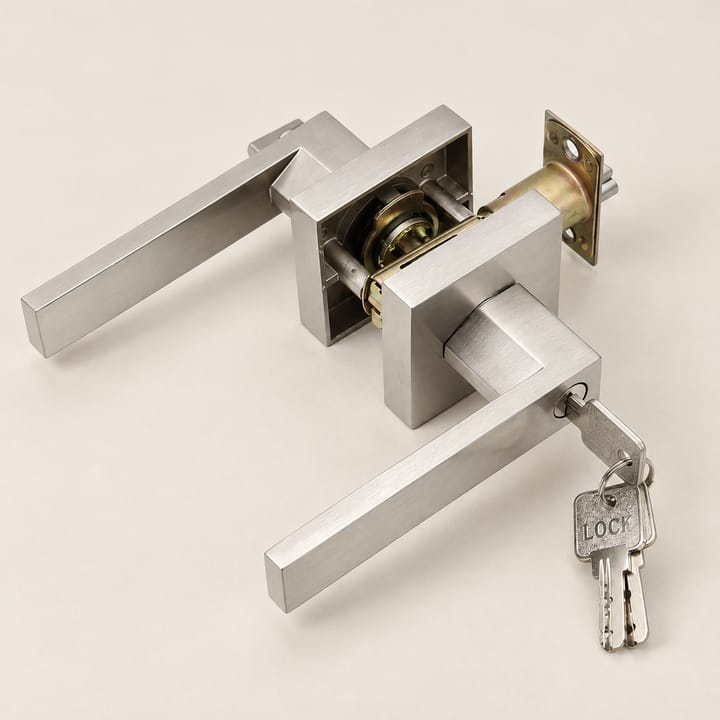

• Silver: a bright, neutral tone that blends with stainless and chrome hardware.
• Gold: a warm finish that pairs well with brass and bronze accents.

All three use the same zinc alloy body and the same lacquered surface. The color is the only difference between the options.

How to fit it

1. Mark the handle height on the door face. A common height is 36 in (91 cm) from the floor, but match your other doors for a consistent line.
2. Drill the cross bore and the edge bore for the latch.
3. Slide the latch into the door edge and screw it in place.
4. Fit the strike plate to the frame so it lines up with the latch.
5. Mount the handle halves on each side of the door and tighten the screws.
6. Test the lever and the key before you close the door for the first time.

Screws are included, so you do not need to source them. A screwdriver and a drill with the right bits are the main tools. If you are replacing an old set, keep the old latch in place only if it matches the new one, otherwise swap in the new latch and strike plate for a clean fit.

Where it works

This set suits bedroom, bathroom, office and entry doors. The square channel lever is easy to push down with a hand, an elbow or a wrist when your hands are full.

Use one set per door. This listing is for a single set, so order the number of doors you plan to fit. If you want a matched look through a hallway or a set of rooms, choose the same color across every door.

Care

Wipe the handle with a dry cloth to keep the finish clean. A dry cloth is enough for daily marks and dust. Avoid wet cloths and harsh cleaners, which can dull the lacquer over time. The zinc alloy body does not need polish or oil.

Check the screws once or twice a year and tighten them if the handle feels loose. A firm lever with no play is easier on the latch and keeps the set working smoothly.
